Build a simple chat app with node.js and socket.io

July 11, 2020

To develop a real chat application, we have to put in place a real-time system of sending/receiving data. It will be impossible to do it with a relational database and Ajax calls. Thank’s to WebSocket and the library socket.io, it becomes easy.

WebSockets and socket.io

WebSockets is a protocol that allows a bilateral synchronous exchange between a client and a server. In the classic web, a client requests to a server and a server responds sending it back the data. This system is impossible for a chat app. In WebSockets, the server can send data to the client, but the client can too ! A WebSocket is a kind of communication pipe opened in two directions. Socket.io is a library based on this protocol to make the use of WebSockets easier.

The Javascript mafia

Node.js is a Javascript back-end technology executed by the server as PHP, Ruby or Python. JavaScript uses events. Node.js keeps this particularity so it is easy to make asynchronous code.

Node.js comes with its own package manager: npm. It becomes easy to install, update, delete packages.

In this tutorial, we are going to use express.js. It’s a micro web framework based on node.js.

Set up of the development environnement

First of all, we need to configure our development environment.

The first thing to do is to start npm, our packages manager. To do so, open a new terminal, create a new repository which will contain our project, go in it and initialize npm:

$ mkdir createSimpleApp
$ cd createSimpleApp
$ npm init

npm will ask you for several information. If you want to skip that, press enter until the end. Now if you look at your project, we will find a new file : package.json. This file is listing all your dependencies.

So now, we are ready to install the packages needed to develop our chat app! We are going to need these packages:

  • express: the micro web application framework for node.js
  • Nodemon: a package that will detect any changes and restart our server. We will use it instead of the classic node command.
  • ejs: a template engine to simplify the production of HTML
  • socket.io: the famous package that manages WebSockets

To install them on our environment, it is super easy:

$ npm install --save package_name

I let you do the work for our 4 packages.

In your package.json, you could add this line into yourscriptskey:

“start”: “nodemon app”

With this line, you will be able to launch your app only with one commande using nodemon:

 npm run start

Our environment is set up, we are ready to develop our application.

The chat app

Architecture of the app

First of all, we have to separate two parts in the development of an application: the client part and the server part. We will have to develop the two parts to make our application up and running.

Image for post

The server will be handled by node.js to make all the engineering (launch the packages and the website). This code will not be seen by the client.

The client part will be loaded on the computer of the client. He will have direct access to the files (html/css and js).

Server side:

We have to create the file app.js that will launch our server and all the packages.

Image for post

Image for post

This bunch of code is actually initializing our express app. If you go tohttp://localhost:3000,you will see a gentle message.

Now we just need to configure socket.io to be ready to deep dive into the WebSocket world.

Image for post

Here, theioobject will give us access to the socket.io library. io object is now listening to each connection to our app. Each time a new user is connecting, it will print out “New user connected” in our console.

If you try to reload our browser on localhost, nothing happened… Why ? Because our client side is not yet ready.

Image for post

For the moment socket.io is only installed on the server part. Next, we will do the same work on the client side.

Client side

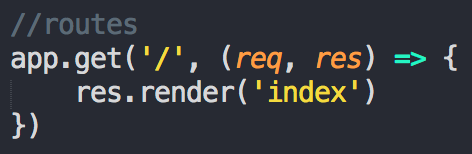

We just have to change a line in our app.js. In fact, we don’t want to display a « Hello world » message, but a real window with a chat box, inputs to write username/message and a send button. To do that we have to render an html file (which will be in our case anejsfile) when accessing the “/” root.

So you need to apply the render method to theresobject.

Image for post

In the other side, you will have to create aviewsfolder, with an index.ejs file in it. The css will be in apublicfolder:

Image for post

Image for post

Ourlocalhost:3000will look like this :

Image for post

So now that we have our basic template, we have to « install » socket.io on each client which will attempt to connect to our server. To do that, we have to import the socket.io library on the client side:

<script src=”https://cdnjs.cloudflare.com/ajax/libs/socket.io/2.0.4/socket.io.js"></script>

The only way to work with socket.io is in a .js file. So at the end of your body add these lines:

<script src=”http://code.jquery.com/jquery-latest.min.js"></script>
<script src=”chat.js”></script>

And create a chat.js file in the public folder.

For the moment, just write this in it :

Image for post

As you probably guessed, when the client will load this file, it will automatically connect and so create a new socket.

So when you refresh the page, we will see « New user connected » in your terminal.

Send and receive data

Username

When a user connects to our application, we will set him/her a default username, for example “anonymous”. To do that we have to go on the server side (app.js) and add a key to the socket. Actually, socket represent each client connected to our server.

Image for post

We also will listen to any call made in « change_username ». If a message is sent to this event, the username will be changed.

On the client side, the goal is to do the opposite. Each time the buttonchange usernameis clicked, the client will send an event with the new value.

Image for post

Message

For the messages, it is the same principle!

chat.js:

Image for post

app.js:

Image for post

For thenew_messageevent, you can see that we call the sockets property ofio. It represents all the sockets connected. So this line will actually send a message to all the sockets. We want that to show a message sent by a user to all (and itself included).

Here is the final result of our chat app:

Image for post

Little improvement

We can add a quick improvement to make our application more realistic. We will add the « XXX is typing… » message.

Image for post

To do so, it is very easy.

After adding an HTML element in ourindex.ejs, we just add a jQuery event listener on typing and send a socket event namedtyping.

Image for post

On the other side, we listen totypingand we broadcast a message. Broadcasting means sending a message to everyone else except for the socket that starts it.

Image for post

Conclusion

See, this application is really easy to code. Before knowing the existence of WebSockets and socket.io, I thought this kind of application was really hard to code !

To improve this app, here is a list of functionalities to add:

  • A registration system with the possibility to chat in a one-to-one chatroom
  • History of all the conversations
  • Online/offline labels
  • Copy every features of WhatsApp !
